Info for Architects
STAS picture hanging systems has developed architectural drawings and specification texts to optimally serve the architect.
We can work with blueprints, floor plans, take offs, etc to give you the best consultation and quote. We will also provide free samples to qualified commercial customers, such as architects and construction companies.
If you would like more information about one of the STAS products, you can always contact the employees of our sales department: email@example.com or by calling (888) 312-6971.

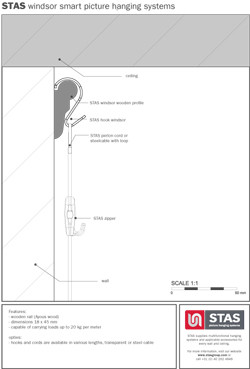

You can download all our architectural drawings below, complete with the various mounting options.
Revit files (rfa)
Download Zip folder with rfa files for all STAS rail systems
The Revit files are OmniClass coded according to the US Revit family standard.
OmniClass Number = 23-21 25 23 13
OmniClass Description = Gallery Hanging Systems
AutoCAD, ARKEY/Adomi files (Dwg, Dxf, Dhg, IFC)Visit our page at the Bouwconnect Library to download these files (site available in Dutch language)
CSI specsCSI specs in PDF
CSI specs in Word (.doc)
