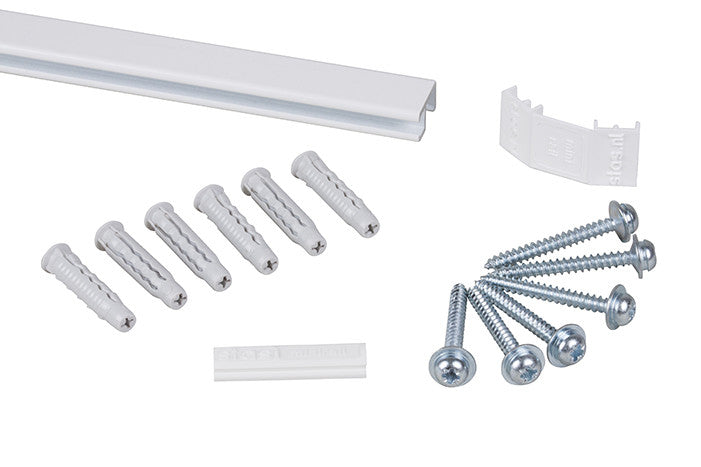

  • STAS minirail white + installation kit

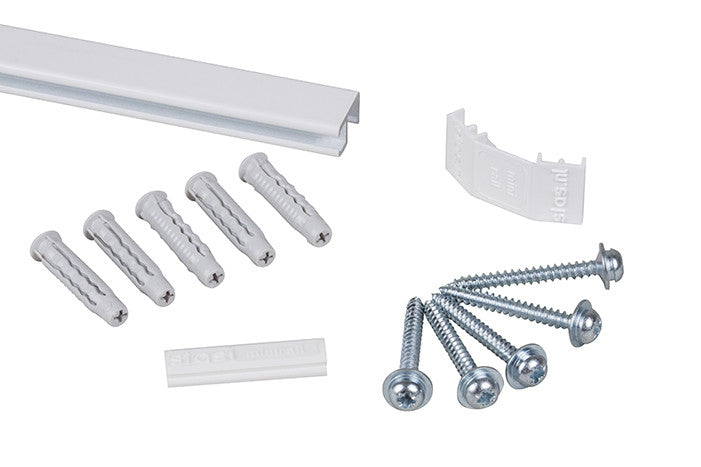

  • STAS minirail silver + installation kit
  • STAS minirail alu + installation kit
  • STAS minirail: idéal pour cuisine, salon ou bureau.
  • a/d/2/1/ad21044771f9b6843cf2525297c0cea8bdc05d47_fototekenen_LR.jpg
  • 1/c/f/c/1cfce4fc32ffb520251538c5dafcb7c7c50ab289_boren_LR.jpg
  • 9/a/7/0/9a7013f80e052fcb79dba6bbf3850b310b426122_B_STAS_minirail_23a48686_7d53_449c_a4fd_3d4bfe51b882.jpg
  • e/d/5/5/ed5562f88cca497754fe0dc4a3305cd1f4ccfebf_A2_minirail_alu_HR_30d5fb97_4b2b_401d_9f0e_dd9fe20a7d76.jpg
  • 6/2/7/6/62764caf5bdfc2d04df91de94ce90c34f44b1643_A3_minirail_zwart_HR_61e8adda_f4da_4b0c_9b35_d6a341e44326.jpg
  • 4/9/2/4/492414edf16dea8c3445de673e1351badd8e0331_C1_minirail_wit_HR_da00afb6_b6ec_4352_b419_19c42a2965a3.jpg
  • BW89000
  • BW52000
  • BW90000
1 24

STAS minirail + installation kit

The slimmest rail, only 16 mm high, virtually unnoticeable in any interior
$31.89 CAD
$31.89 CAD
Sale Sold out
In stock
Colour
Length
Payment options available
Shipping calculated at checkout.

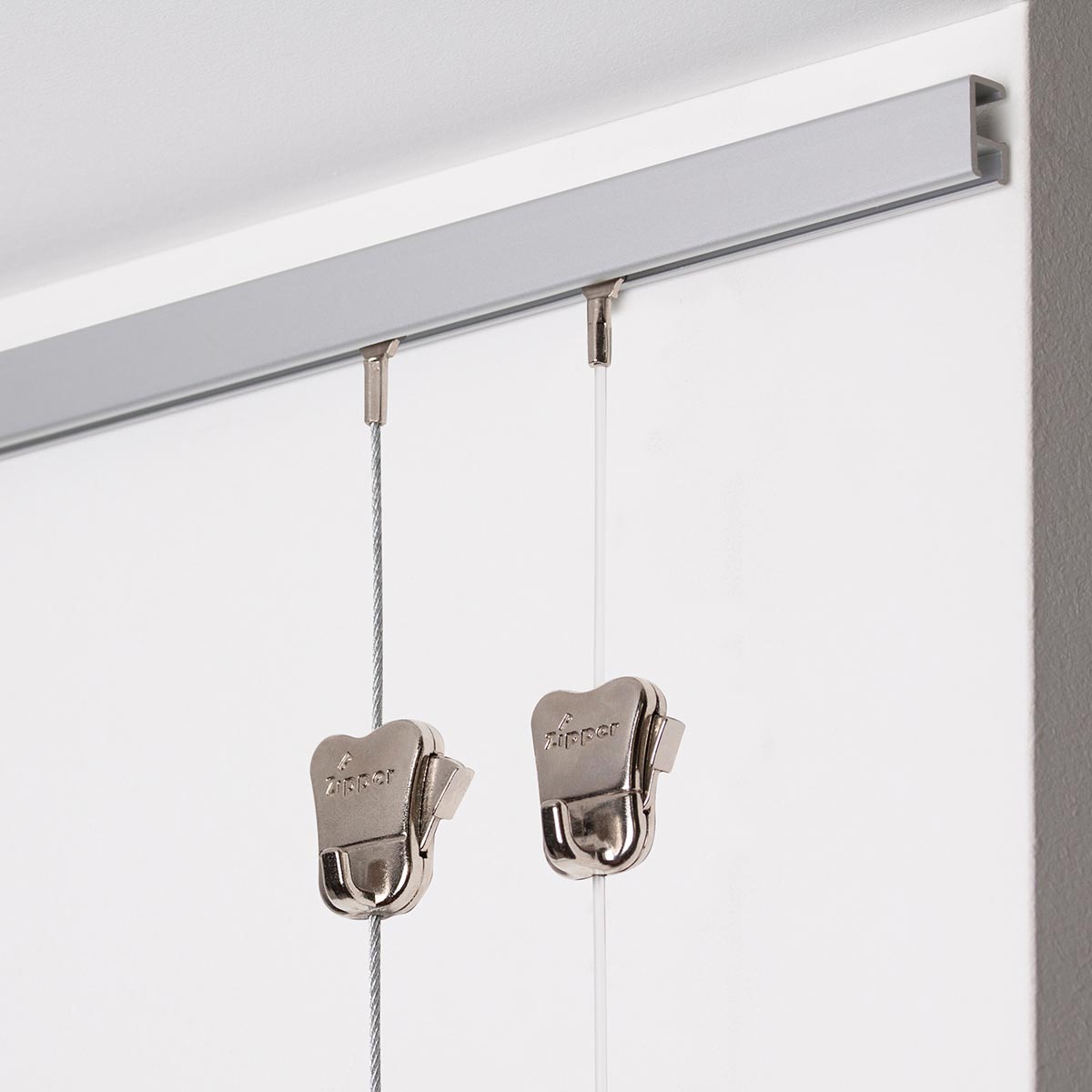

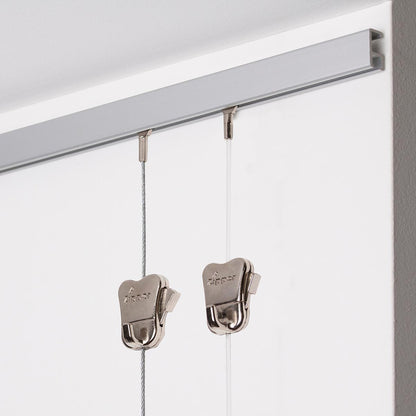

The patented STAS minirail hanging system is the slimmest and most innovative picture hanging system in the world. The rail is only 0.63 inches/16 mm high and is barely noticeable in your interior.
The slimmest rail in the world
Load capacity: 55 lbs/25 kg/m¹
Mounted with supplied clip screws with Torx T20 head for extra grip
Article Code: BW51000
Barcode EAN: 8715317006233

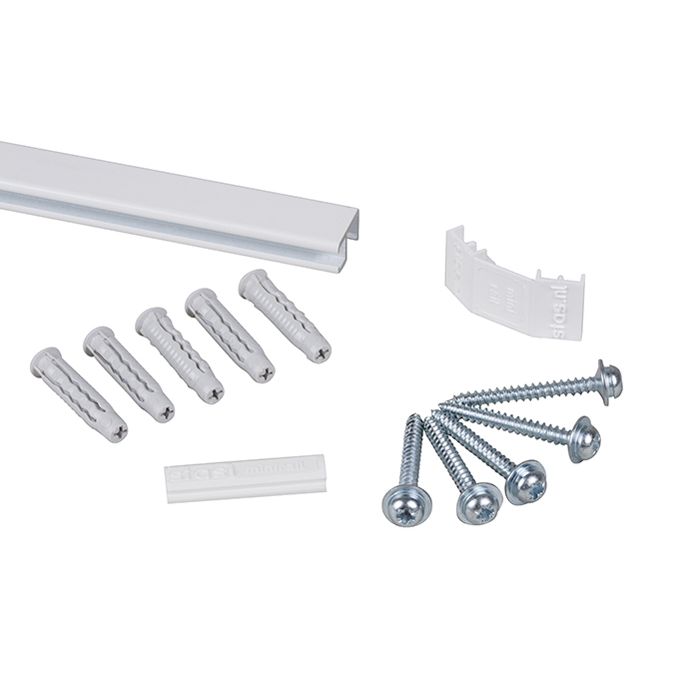

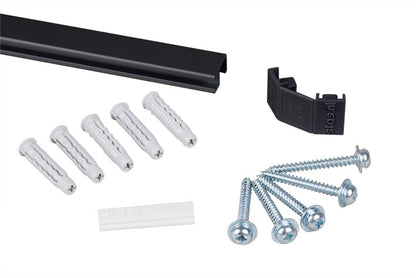

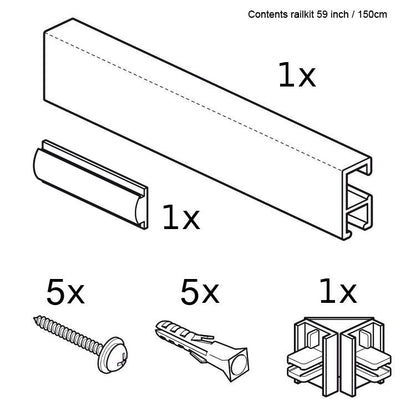

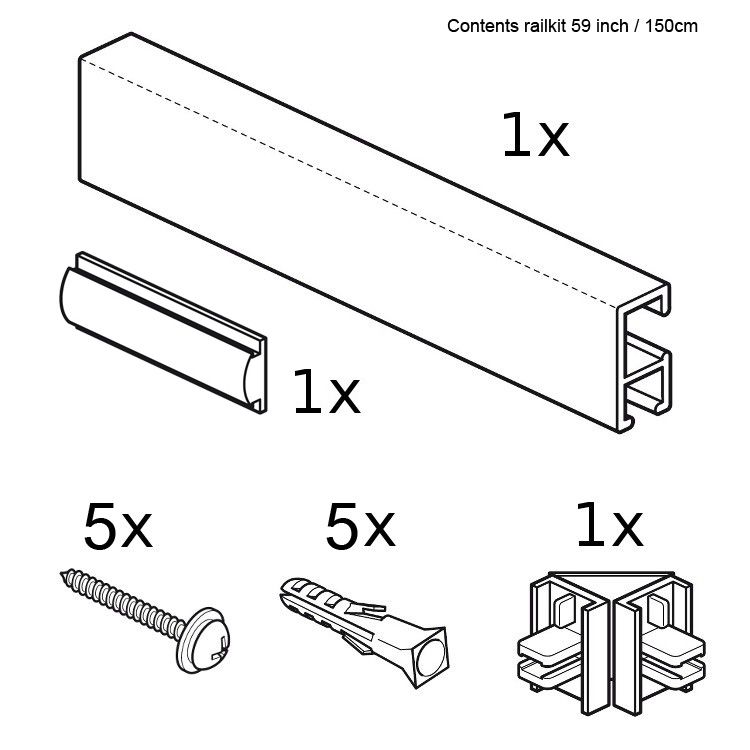

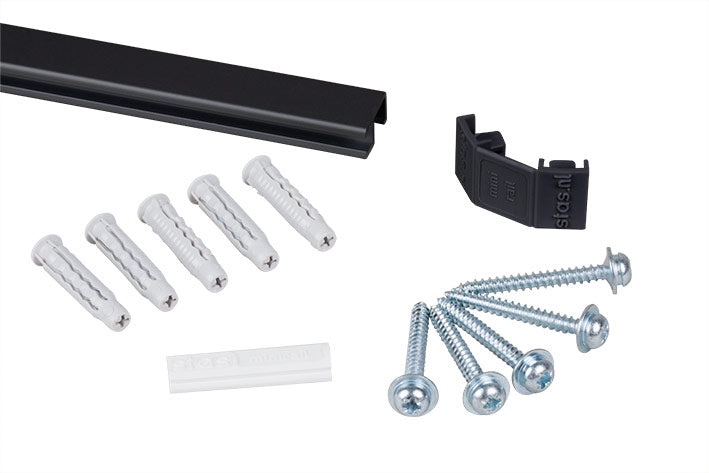

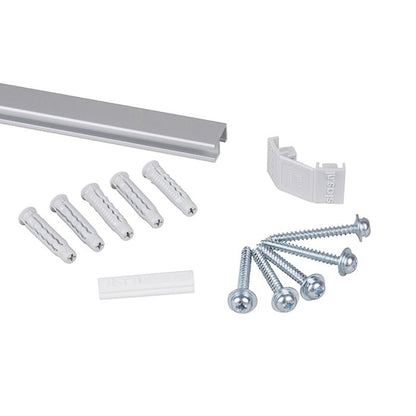

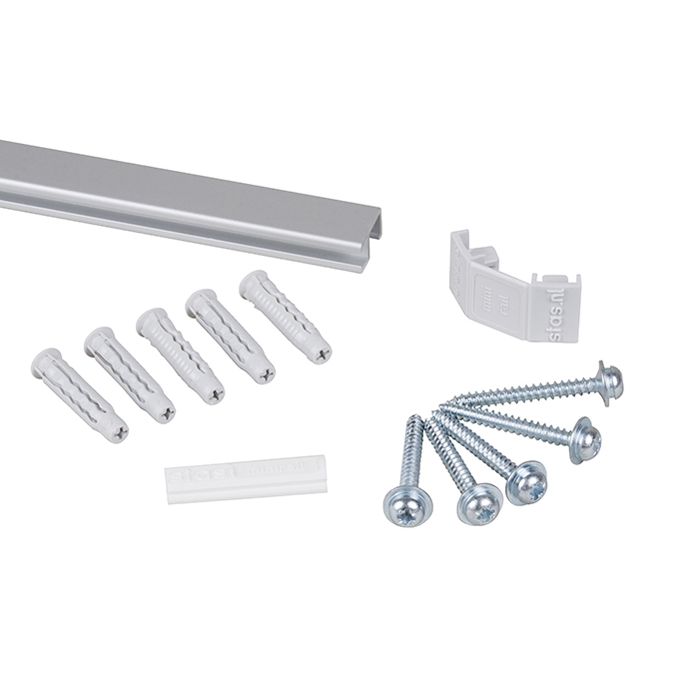

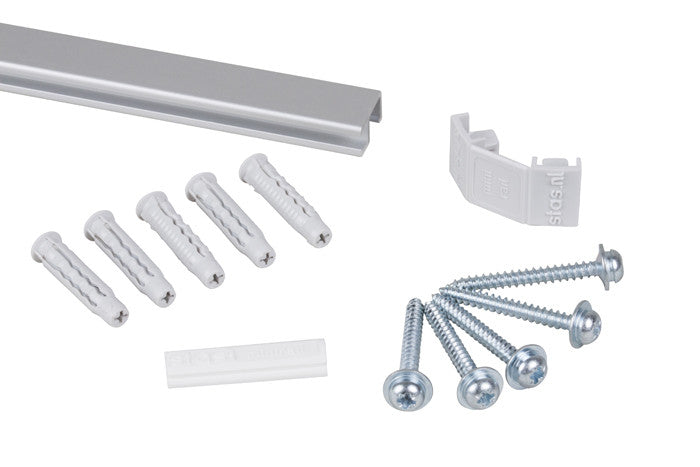

1x rail in length of your choice | for 150 cm: 5x minirail Torx T20 clip screw and wall plug, for 200 cm: 6x minirail Torx T20 clip screw and wall plug | 1x connector | 1x combi cap for 2 end caps or 1 corner connection

We’re happy to help
MON - FRI: 9.30 AM - 8 PM EST

P: +1 647 945 0995
E: info@picturehangingsystems.ca

Delivery within 3 working days
14-day return window, no questions asked
Great reviews from our customers
Complete your order
    f/f/e/b/ffebbf890a31d74b878ac54e48a7d4d1238eac53_HAKENENKOORDENSAMENSTELLEN.jpg
    Picture rail hooks and cords (Readymade sets)
    2/a/9/6/2a960ccae6d6d156f8024c248819466cb7f4eeaf_TH30027_STAS_textielhanger_27_mm_sfeer_1.jpg
    STAS quilt hangers
5 year warranty - STAS guarantee*
Free shipping on orders > CA$250
Easy to install
Specialist since 1995
Great reviews from our customers

STAS minirail - Smallest in the world

The patented STAS minirail system is the thinnest and most innovative picture hanging system in the world. The rail, which is available in white or a natural aluminium colour, is only 0.63 inches/ 1,6 cm wide and perfectly blends in with your interior. The STAS minirail system is very easy to use. Fitting, using the specially developed STAS minirail clipscrew, couldn’t be simpler. If you want an elegant, barely visible hanging system, the STAS minirail system is your best choice. The STAS minirail is an elegant rail that attaches to the wall.

Top benefits of the STAS minirail:

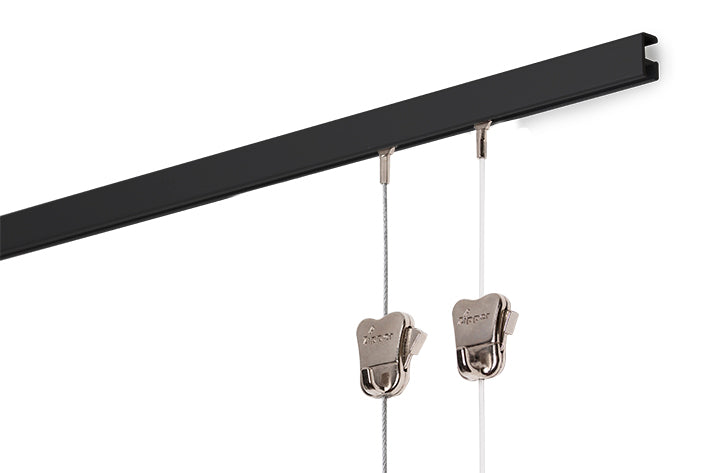

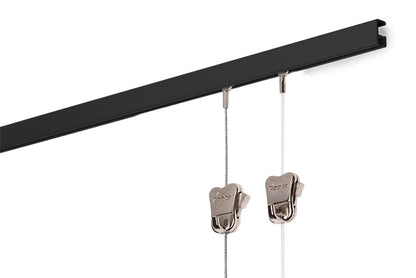

  • STAS perlon or steel cords with cobra can be hooked in at any point of the rail
  • Can be installed on basically any wall type (brick, drywall, wood, etc.) with the practical clipscrew
  • The STAS minirail is only 0.63 inches/1,6 cm wide
  • Paintable in a colour to your taste and easy to cut to size with a hacksaw
  • The STAS minirail supports multiple cords and multiple hooks per cord up to 55 lbs/25 kg per 39.25"/100 cm of picture rail

Picture hanging tips

b/6/8/a/b68a811f31d1aa5b0248105d88f2e98fc1c88c7b_A1_minirail_wit_HR_test_700px_web_100kw

Installation is easy

Installation & use
Wall mounting, at least 19 mm from the ceiling
Tools needed
Drill, pencil or marker pen, screwdriver, spirit level, tape measure, Stanley knife, crosscut saw
  • 1. Determine the position

    Use the information from the manual and/or our drilling template to measure the height and mark the fixing points. Check everything is level with a spirit level and maintain the recommended distance between the drill holes.

  • 2. Drill the holes

    Drill holes at the marked points using the correct drill bit diameter. For hard surfaces such as concrete or stone, use a hammer drill. Insert the wall plugs into the holes and secure the screws with the rail clips.

  • 3. Fix the rail

    Clip the rail onto the rail clips. Not going in first time? Place a soft cloth over the rail and gently tap it into position with a rubber mallet.

  • 4. Hang your item

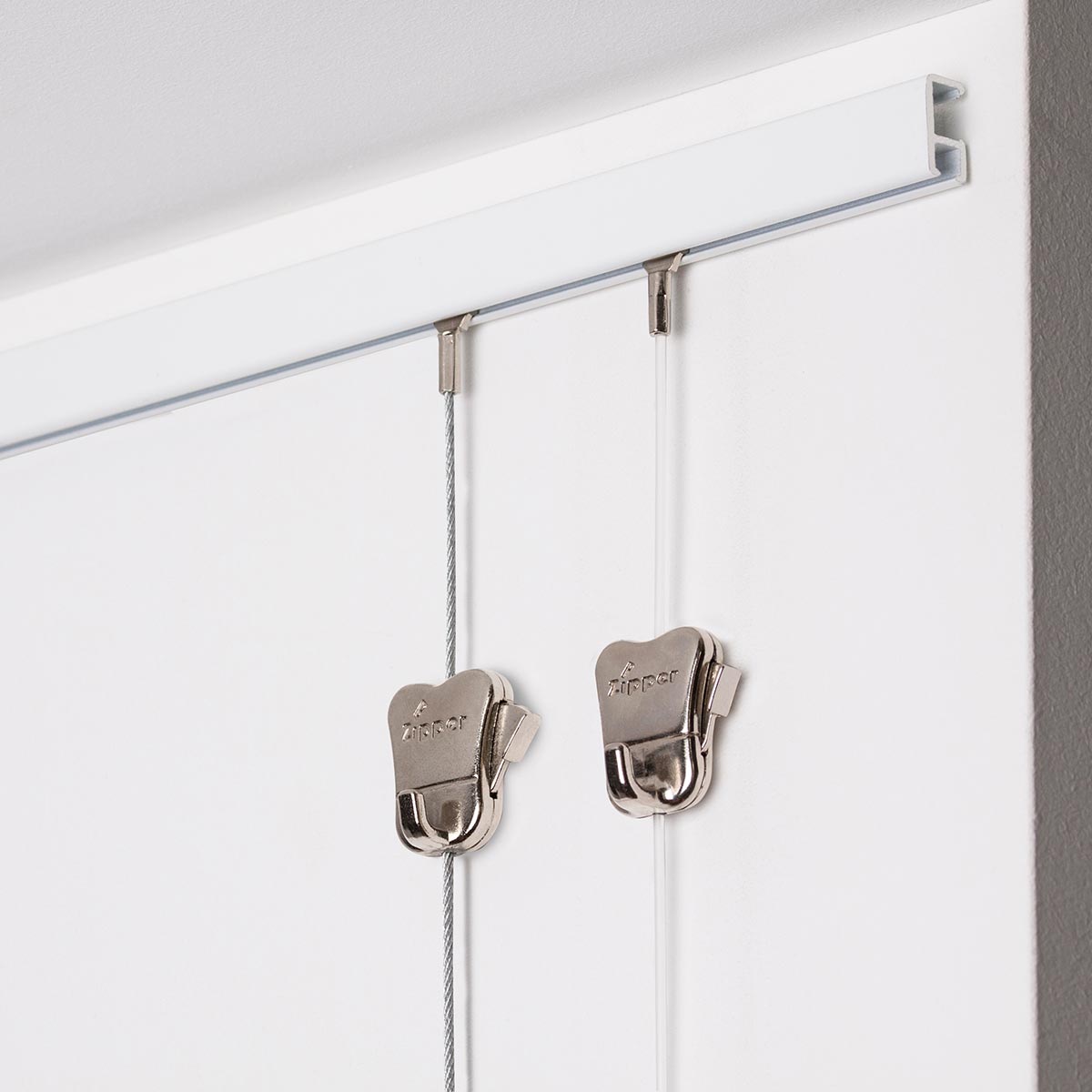

    Hook your chosen cord into the rail. This rail is compatible with all STAS cords with a cobra connector. Slide the hook onto the cord, adjust it to the desired height, hang your picture, and you're done!

Downloads

Manual (PDF) Architect drawing (PDF) Product sheet (PDF)

For architects, we have bundled all relevant documents into one ZIP files. Here you will find: Autocad, Dxf, architect drawings, REVIT and other useful files.

Download Architect's pack (ZIP)

Specifications

Material
Rail: Aluminium | Clip screw: Steel | Connector: Plastic | Combi cap: Plastic | Wall plug: Plastic
Dimensions
9 x 16 mm x rail length
Weight capacity
25 kg/m¹
Condition
New
Installation difficulty
Average – basic tools required
Intended for
Interior
Suitable for
Suitable for all types of walls (e.g. brick, plasterboard or wood)
Product line
STAS minirail
Product category
Wall mounted rail
Features
Modular, reusable system | For long-term use | Simple mounting without visible screws | Quick hanging and swapping | Damage limiting | Paintable | Sleek and timeless design | Robust | Scratch-resistant | Smooth finish | High-quality aluminium | Corrosion-resistant | Water-resistant | Approved by TÜV | Compatible with STAS cords with cobra connection
Repair service
Carry-in
Return window
14 days, no questions asked
